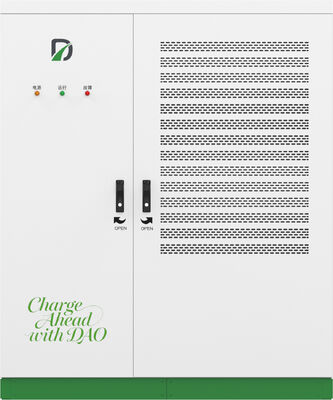

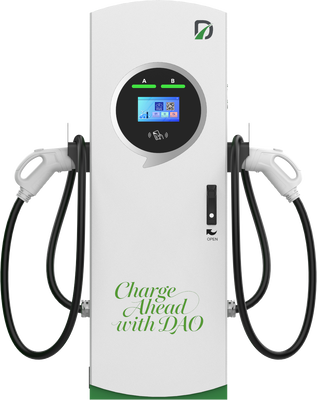

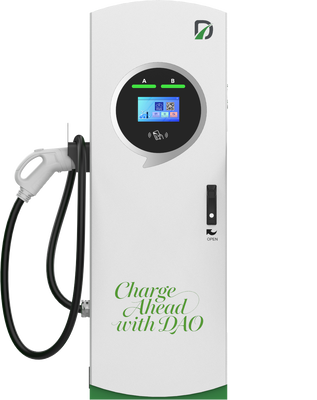

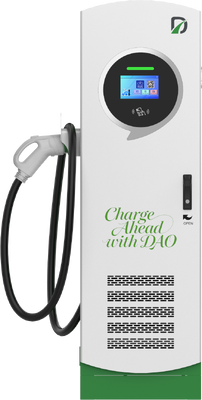

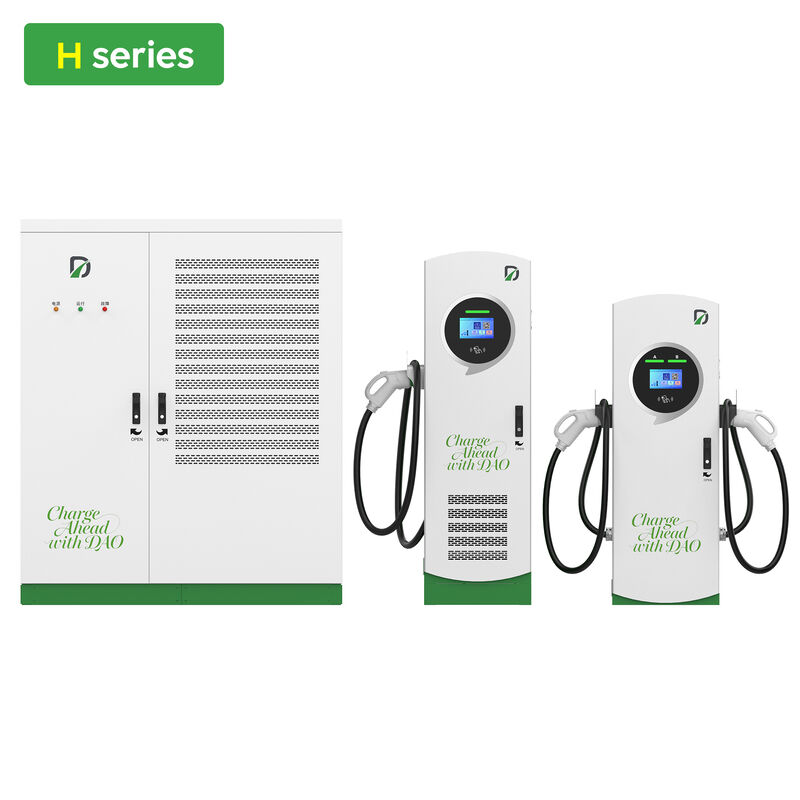

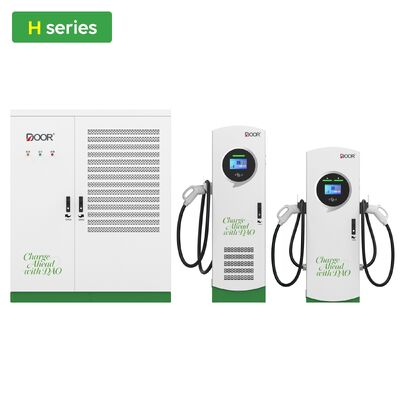

H Serles MW-class Flexible Charging station 360kW/480kW/720kW/800kW/1040kW

H Serles MW-class Flexible Charging station 360kW/480kW/720kW/800kW/1040kW

Merknaam: DOOR
Modelnummer: T -serie
MOQ: 1 st
Prijs: Onderhandelbaar
Betalingsvoorwaarden: L/C, T/T, Western Union
Gedetailleerde informatie
Plaats van herkomst:
China
Certificering:
CE/CB
Voeding:
3P+N+PE
Nominale spanning:
AC380V ±15%
Frequentie:
50/60 Hz
Uitgangsspanning:
Gelijkstroom 200 ~ 1000 V
Maximale stroom:
tot 1600A
Uitgangscircuits:
4-16 Connectoren
Efficiëntie:
≥96%
Nominaal vermogen:
1040 kW
Behuizing:
Gegalvaniseerd staal
Led-indicator:
GREEN/BLUE/RED
LCD-scherm:
7,0 inch
Startmodus:
Plug&Charge/RFID-kaart/APP
Noodstop:
Ja
WIFI:
Optioneel
Ethernet/3G/4G:
Optioneel
Ocpp:
OCPP 1.6 (OCPP 2.0 optioneel)
Energiemeter:
MID-gecertificeerd
Rcd:
Type A
Bescherming tegen binnendringing:
IP55
Impactbescherming:
IK08
Certificering:
CE | CB((In Progress))
Certificatienorm:
EN/IEC 61851-1: 2017, EN/IEC 61851-23: 2014
Garantie:
2 jaar
Installatie:
Vloerstand
koelmethode:
Ventilatorkoeling/vloeistofkoeling
Lawaai:
≤ 65dB
werk temperatuur:
-20 °C ~ +50 °C
Werkvochtigheid:
0%~95%
Het werkhoogte:
≤2000m
Pakketafmeting:
2100*770*1950mm
Bruto gewicht:
>500 kg
Extern pakket van 344 kg:
Houten kast
Productbeschrijving

Model: H360,H480,H720,H800,H1040
Specification: GBT/ype2/Type1
Size: 1650*770*1950mm(360~720kW) / 2100*770*1950mm(800~1040kW) 500KG
Price: According To The Quantity
Function: Commercial Use
